Ref. 1956

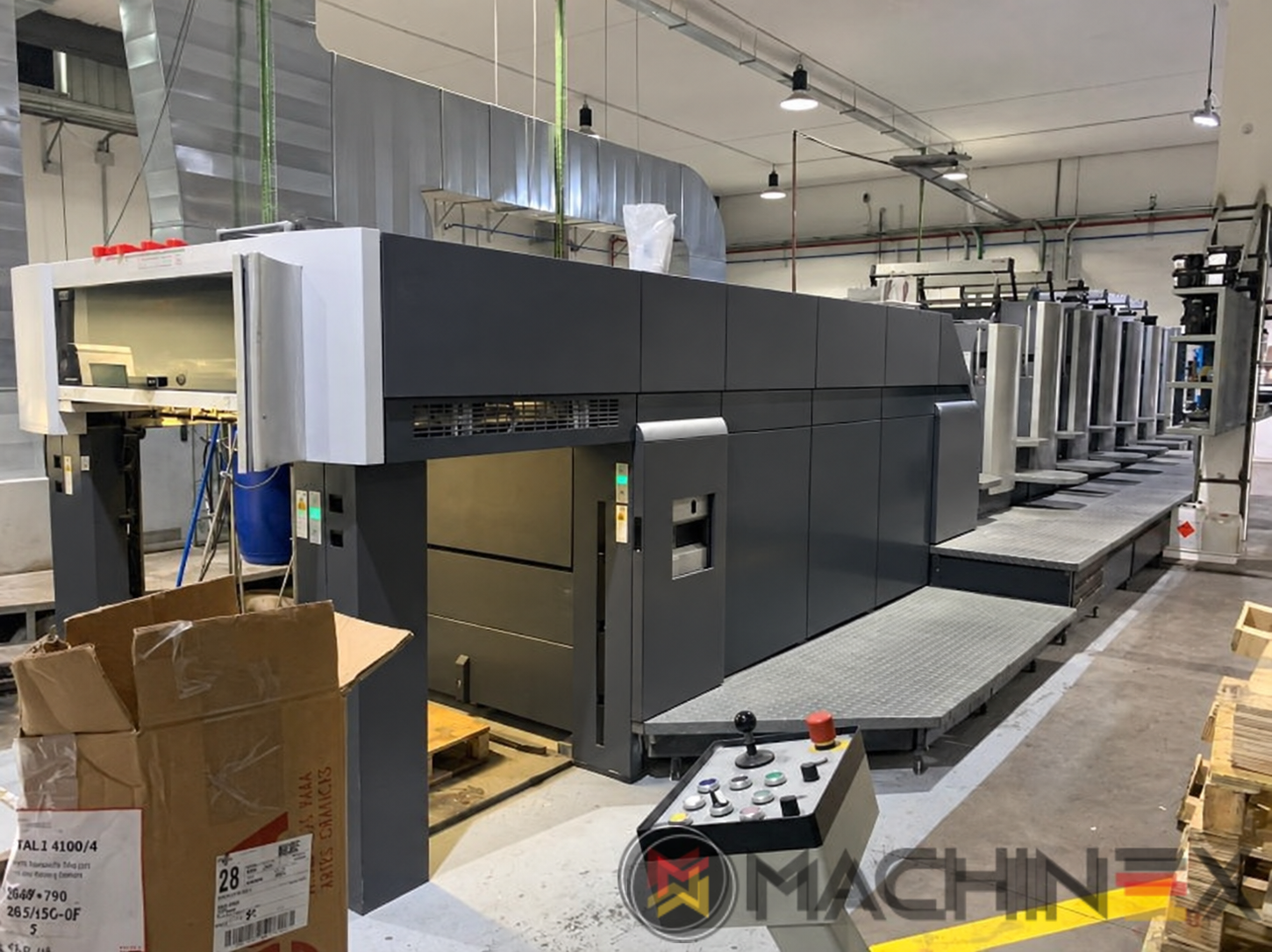

HEIDELBERG CD 102 6 LX HYBRID 2004
- Under power
- Test possible
Video 1 of 2Video
Key facts
- Year
- 2004
- Counter
- 245 Mill
- Condition
- Very good
- Category
- Used Printing machines · 6 Color + Coater
Technical data
- Counter
- 245 Mill
- Max. format
- 720 x 1020 mm
- Min. format
- 280 x 420 mm
- Stock Thickness
- 0.03 – 1.00 mm
- Print output
- 15.000 s.p.h.
- Frequency
- 50 hz / 60 hz
- Image Area
- 710 × 1020 mm
- Weight Approx
- 38,000 – 42,000 kg
- Plates Length x width
- 790 × 1030 mm
Equipment
- Alcolor Vario sistema de mojado
- Pantalla táctil de la consola CP 2000
- Autoplate (Cambio de planchas semiautomático)
- Lavadores automáticos de Cilindros de impresión mantillas y rodillos de entintado
- Unidad de suministro de barniz 550 l/h
- detector de hojas múltiples
- Controles electromecánicos de la corriente
- Control de hoja doble electromecánico
- El lado electrónico del ZMK pone el control
- Coating unit with chambered doctor blade
- Diagonal register
- Technotrans Refrigeración Recirculación
- Grosor 0,3 - hasta 1,0 mm
- Preset Plus en marcador
- Preset Plus en la salida
- Non Stop marcador
- Prima de medición de la IPA
- Lámparas intermedias I.S.T. UV (x2) intercambiable para todos las unidades
- Interdeck I.S.T. UV lamp (x3) in the delivery
- Preparación secador intermedio en toa las unidades
- Hybrid equipment with 2 UV Interdeck + 3 UV Lamps in delivery + IR-Hot air dryer in delivery
- Salida prolongada (X3)
- Drystar 3000 combination dryer
- CP 2000 Master Level
Description
Softare License CP 2000 Master Level CP 2000 Color Asisstent CP 2000 Instante Start CP 2000 Instante Gate
